Model 6504-454 monel gauge, 6.0 diameter, 1/4 mount

Additional Photos

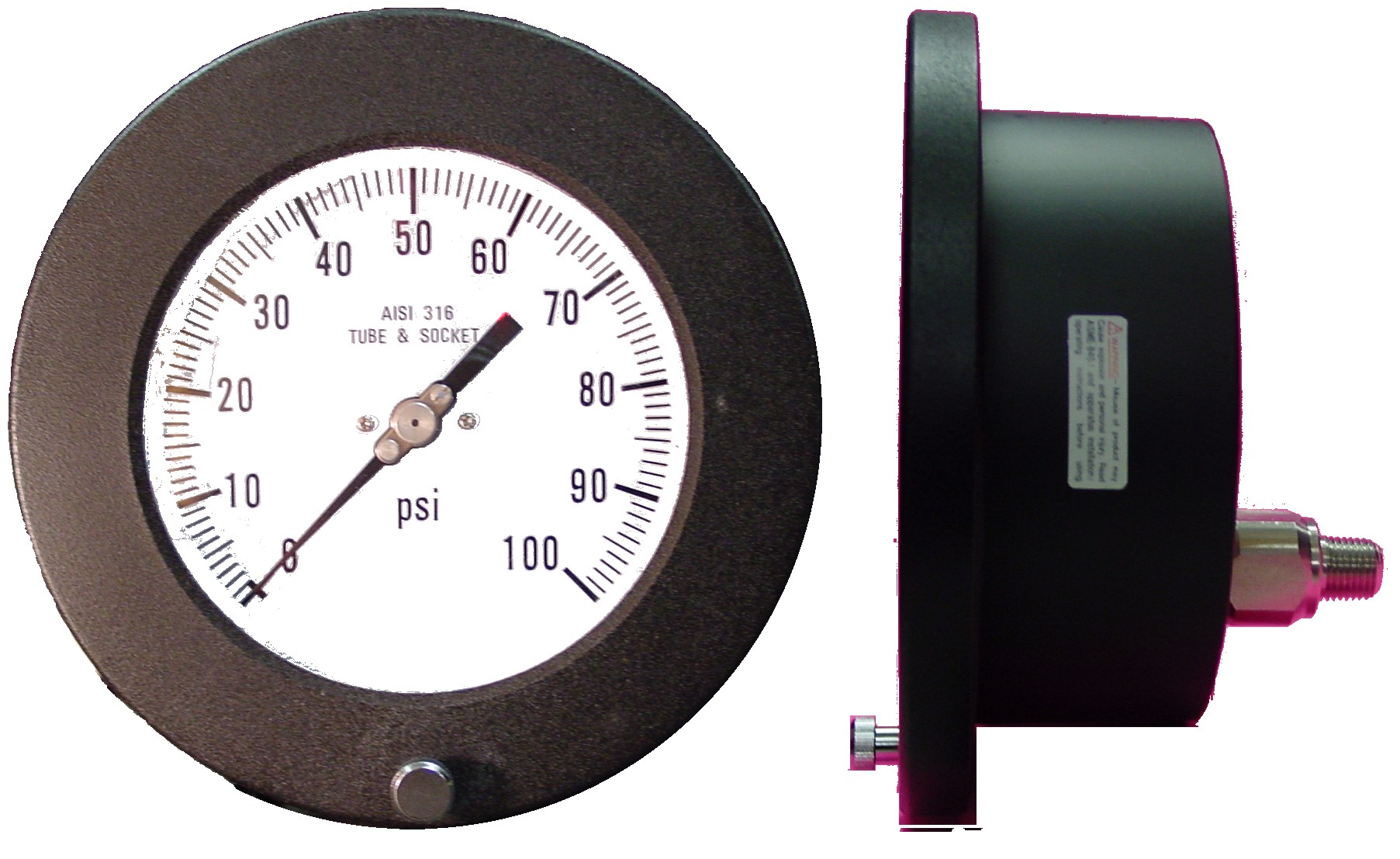

Model 6504-454 monel gauge, 6.0" diameter, 1/4" mount
Model 6504 is a solid front process gauge with aluminum front flange safety case with black enamel finish. The aluminum black wrinkle enamel coated ring makes this gauge well suited for panel board applications. The front screw lets users open the window and permits easy panel installation. There is a solid wall between the pressure sensing unit and the window, which provides greater safety for personnel monitoring the gauges.

The bourdon tube with socket may be selected in brass, stainless steel or monel material. If you choose stainless steel, for example, then all the internal parts such as bourdon tube, socket, movement, screws, washers, etc. will be stainless steel. The stainless steel sensing element is suitable for use in corrosive media and the pressure system is not subject to damage.

The 6504 model is supplied as dry only. The 6" dial size is used when you must be able to view the dial from a greater distance.
  • Solid front with pressure relief opening to ASME B40.1 standard that will protect users from fluid and particle in the event of failure.
  • The aluminum case with black wrinkle ring can resist high temperatures and a rugged environment.
  • Maximum and minimum pressure stop of movement can be offered to protect against damage caused by sudden vacuum or overpressure
  • Socket material: Monel K-500
  • Mounting: stem or panel mount
  • Window material: glass
  • Bourdon tube: Monel K-500
  • Pointer: anodized aluminum with black finish
  • Scale: PSI, kPa, Bar, kg/cm (single or dual scale)
  • Model 6504 has a lower back connection location with front flange panel mount gauges
  • 6" diameter
  • 1/4" lower back mount
  • Accuracy: 0.5% full scale (grade 2A to ASME B40.1)

Item Number: 2866

Price: $300.00
