American Roller Chain No. 35-1

Additional Photos
American Roller Chain No. 35-1

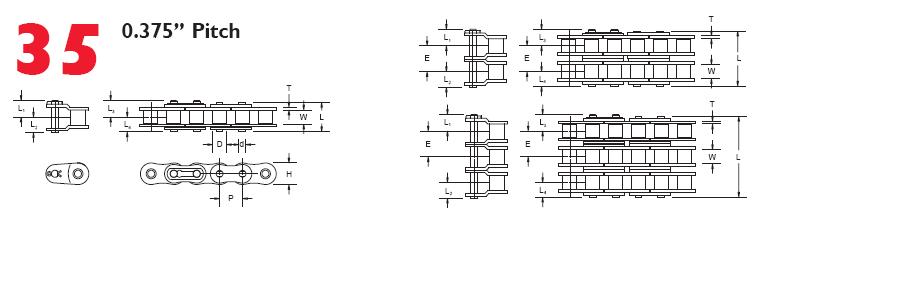

Measurements: Pitch (P) : .0375" Width between L.P (W).: .189 Bushing Dia. (D) :.200 Link Plate (H): .355 Link Plate (T): .049 Pin Dia. (d):.141 Transverse Pitch (E): ---- Pin- L- .461 Pin- L1- .264 Pin-L2-.252 Pin-L3-.264 Pin-L4-.240 Average Tensile Strength lbs: 2,100 Max. Allowable Load lbs: 419 Average Weight LBS/FT: .210 Made in the USA *Please call us for current pricing*

Item Number: 4857

Please Call for Price
